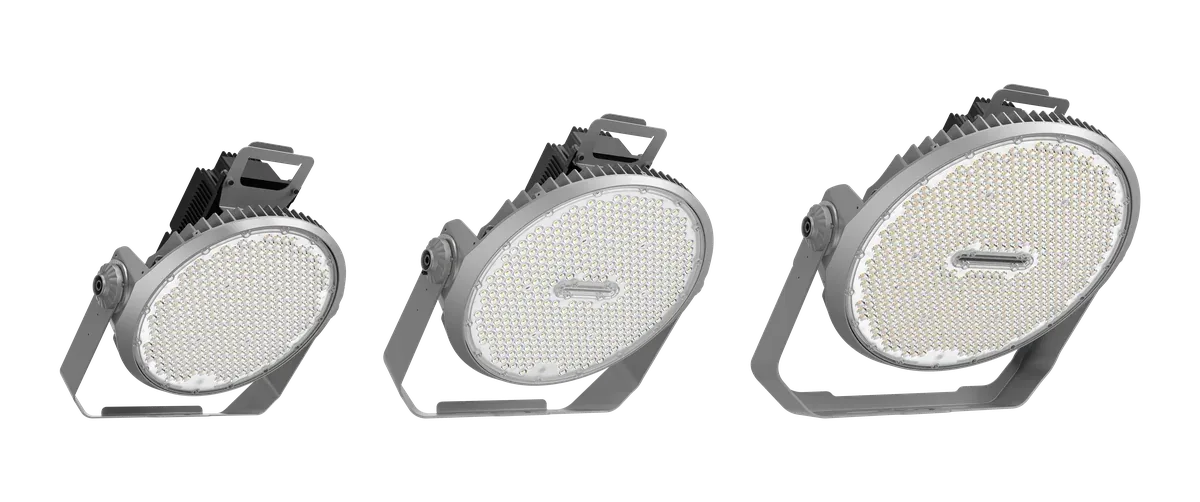

AGCLED SP17 Stadium Sports Light

In Stock · ships <48h

SP17 Stadium Sports Light

AGCLED · Sports · SP17

all-in-one sports arena luminaire with lightweight design and superior heat dissipation.

Power: 1200W
Luminous Flux: 205,100 lm
Efficacy: 165 lm/W
CCT: 5000K (4000K opt)
CRI: Ra70/Ra80
Beam Angle: F64803 (30°)
Input Voltage: 120-277/200-480Vac
Surge Protection: 10kV L-N, 20kV L/N-E
Control: DIP/0-10V/Synapse/DMX/DALI
IP Rating: IP66
IK Rating: IK08
Operating Temp: -30~+45/+50 °C
Dimensions: 400x429x246 ~ 581x648x332
Weight: 9.9-25.1 kg
Certifications: UL / DLC
Warranty: 5.0 years

List · 1-199 units$908USD / fixture

Add componentsships from Houston, TX

F34803PC Lens 30° for SP17-600
$17
0
F34804PC Lens 45° for SP17-600
$17
0
F43204PC Lens 45° for SP17-800
$29
0
F43206PC Lens 60° for SP17-800
$29
0
F64804PC Lens 45° for SP17-1200
$51
0
F64806PC Lens 60° for SP17-1200
$51
0
SP17-L235Visor for SP17-600W
$37
0
SP17-L275Visor for SP17-800W
$45
0
SP17-L325Visor for SP17-1200W
$52
0
BC-S17-02Luminaire Aiming Device SP17
$113
0

PDFDownload Datasheet →IESDownload IES →
